Scaffolding Products
Cuplock System

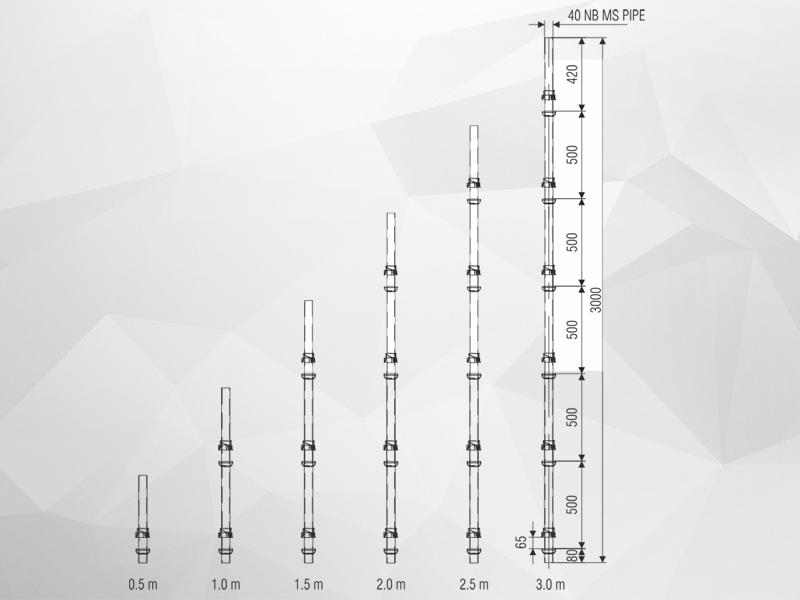

Vertical (Standard) and Ledger (Horizontal) are made from 40 NB ISI Marked MS Pipe with 2.9 mm to 3.2 mm thickness. Surface is coated with synthetic enamel.
On Special Requirements cuplock system is available in variations like Powder Coated and Galvanized.
| Product Code | Heght | Approx. Weight | Cup |
|---|---|---|---|
| ISF 101 AS | 0.5m | 2.2 kg | 1 |
| ISF 101 BS | 1.0m | 4.5 kg | 2 |
| ISF 101 CS | 1.25m | 5.3 kg | 2 |
| ISF 101 DS | 1.5m | 6.6 kg | 3 |
| ISF 101 ES | 2.0m | 8.7 kg | 4 |
| ISF 101 FS | 2.5m | 11.0 kg | 5 |
| ISF 101 GS | 3.0m | 13.3 kg | 6 |

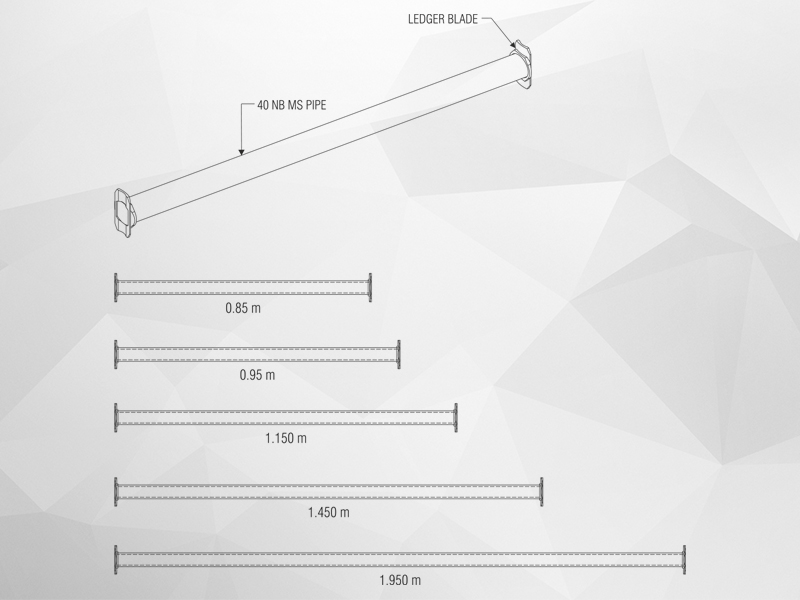

Ledger (Horizontal)
| Product Code | Length | Approx. Weight |
|---|---|---|
| ISF 102 AS | 0.9m | 3.2 kg |
| ISF 102 BS | 1.0m | 3.5 kg |
| ISF 102 CS | 1.2m | 4.2 kg |
| ISF 102 DS | 1.5m | 5.2 kg |
| ISF 102 ES | 2.0m | 6.7 kg |
