Adjustable U-Head
Adjustable U-Head & Base Jacks are designed to be used in conjunction with adjustable scaffolding system. The core function of a U-Head is to hold primary or secondary runner securely and Base Jacks are useful when when height adjustment is required.

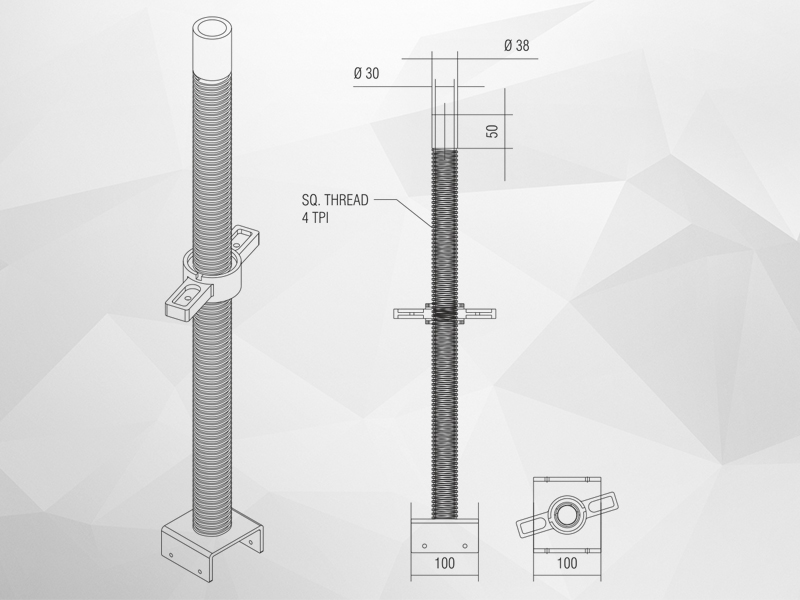

Hollow : Made of MS Tube
Solid : Made of MS Solid Bar
| Product Code | Total Length | Threaded Length | Approx. Weight | Outer Diameter | Surface |
|---|---|---|---|---|---|
| ISF 401 H | 300mm | 250mm | 2.40 Kg | 38Q | Threaded Pipe |
| ISF 402 H | 400mm | 350mm | 2.70 Kg | ||
| ISF 403 H | 450mm | 400mm | 2.90 Kg | ||
| ISF 404 H | 500mm | 450mm | 3.10 Kg | ||
| ISF 405 H | 600mm | 550mm | 3.40 Kg | ||
| ISF 406 H | 750mm | 700mm | 3.90 Kg |

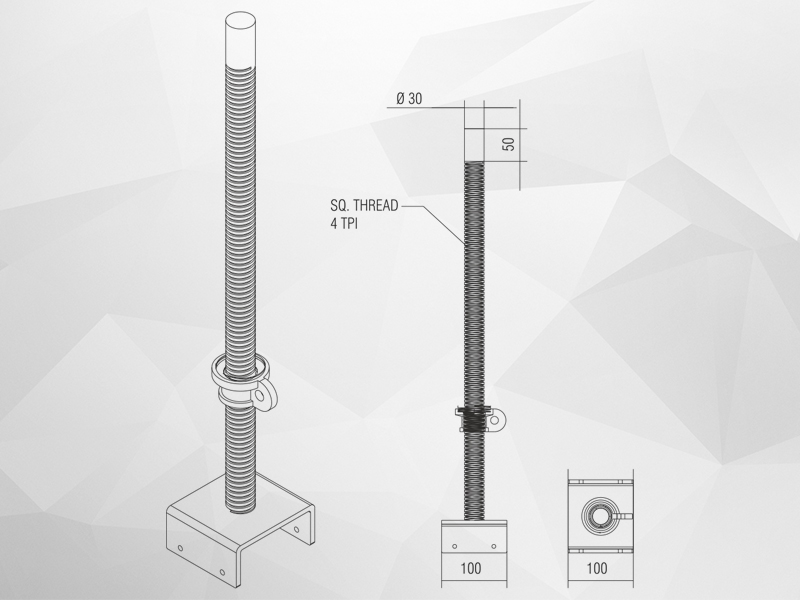

Adjustable U Head Solid
| Product Code | Total Length | Threaded Length | Approx. Weight | Outer Diameter | Surface |
|---|---|---|---|---|---|
| ISF 401 S | 300mm | 250mm | 3.10 KG | 38Q | Threaded Pipe |
| ISF 402 S | 400mm | 350mm | 3.70 KG | ||
| ISF 403 S | 450mm | 400mm | 3.90 KG | ||
| ISF 404 S | 500mm | 450mm | 4.20 KG | ||
| ISF 405 S | 600mm | 550mm | 4.80 KG | ||
| ISF 750 S | 750mm | 700mm | 5.60 KG |
