Formwork Panel

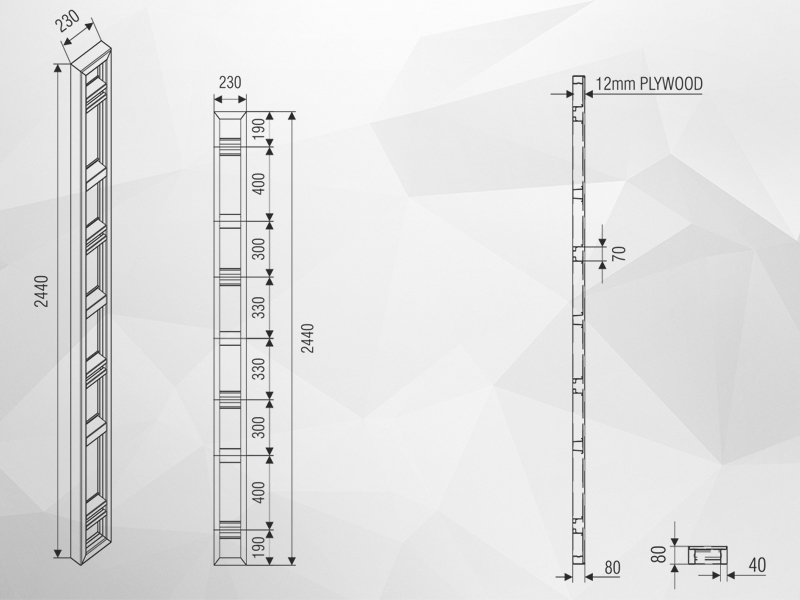

| Width | 230mm |
|---|---|
| Height | 2440mm |
| Thickness | 2mm |
| Expose Surface | 12mm Shuttering Plywood |
| Panel Surface | Powder Coated Roll Formed MS Sheet |
| Secton | 80mm x 40mm |
| Approx. Weight | 27 kg |

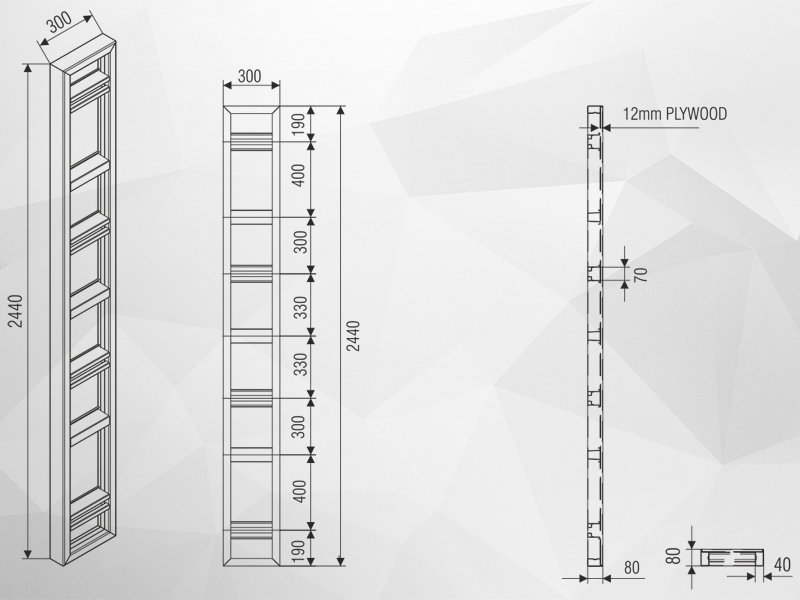

| Width | 300mm |
|---|---|
| Height | 2440mm |
| Thickness | 2mm |
| Expose Surface | 12mm Shuttering Plywood |
| Panel Surface | Powder Coated Roll Formed MS Sheet |
| Secton | 80mm x 40mm |
| Approx. Weight | 30 kg |

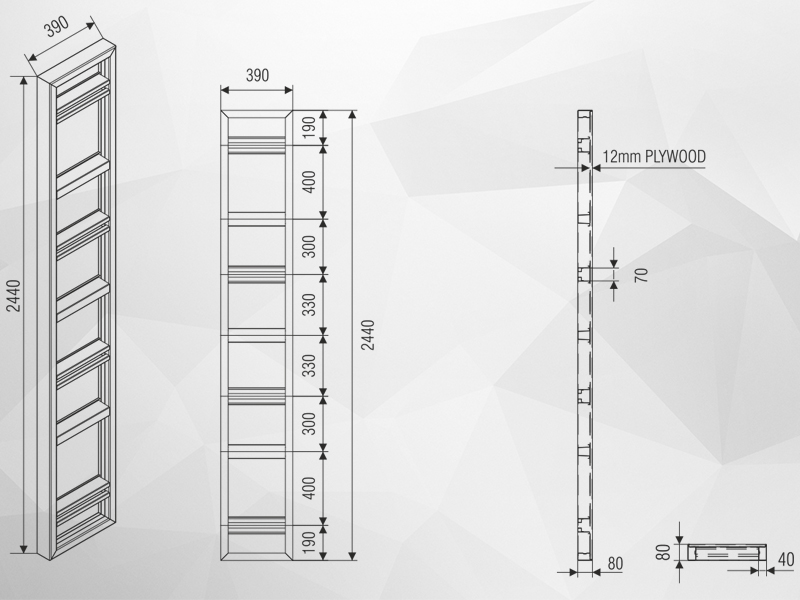

| Width | 390mm |
|---|---|
| Height | 2440mm |
| Thickness | 2mm |
| Expose Surface | 12mm Shuttering Plywood |
| Panel Surface | Powder Coated Roll Formed MS Sheet |
| Secton | 80mm x 40mm |
| Approx. Weight | 36 kg |

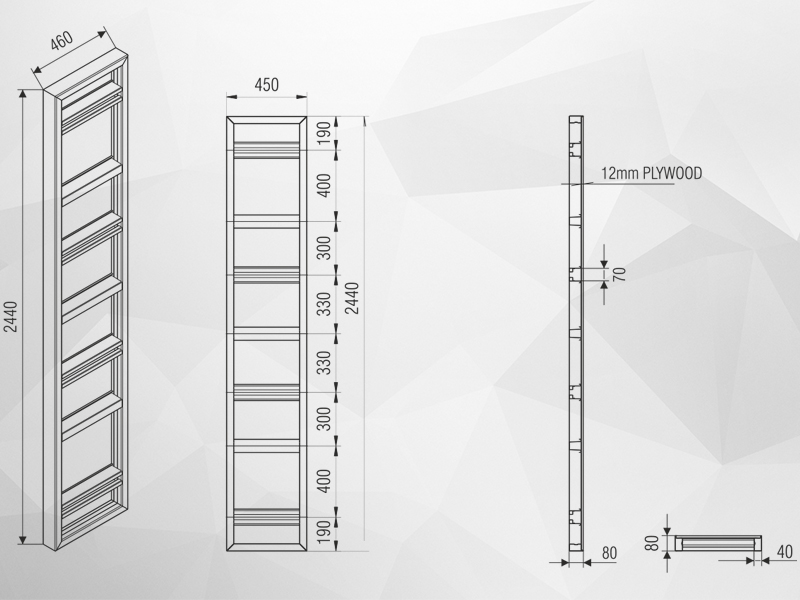

| Width | 460mm |
|---|---|
| Height | 2440mm |
| Thickness | 2mm |
| Expose Surface | 12mm Shuttering Plywood |
| Panel Surface | Powder Coated Roll Formed MS Sheet |
| Secton | 80mm x 40mm |
| Approx. Weight | 39 kg |

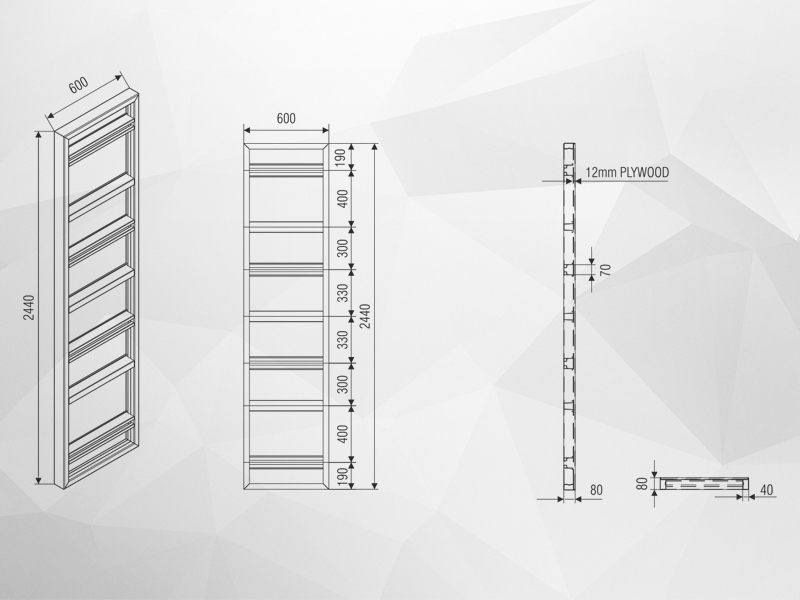

| Width | 600mm |
|---|---|
| Height | 2440mm |
| Thickness | 2mm |
| Expose Surface | 12mm Shuttering Plywood |
| Panel Surface | Powder Coated Roll Formed MS Sheet |
| Secton | 80mm x 40mm |
| Approx. Weight | 46 kg |

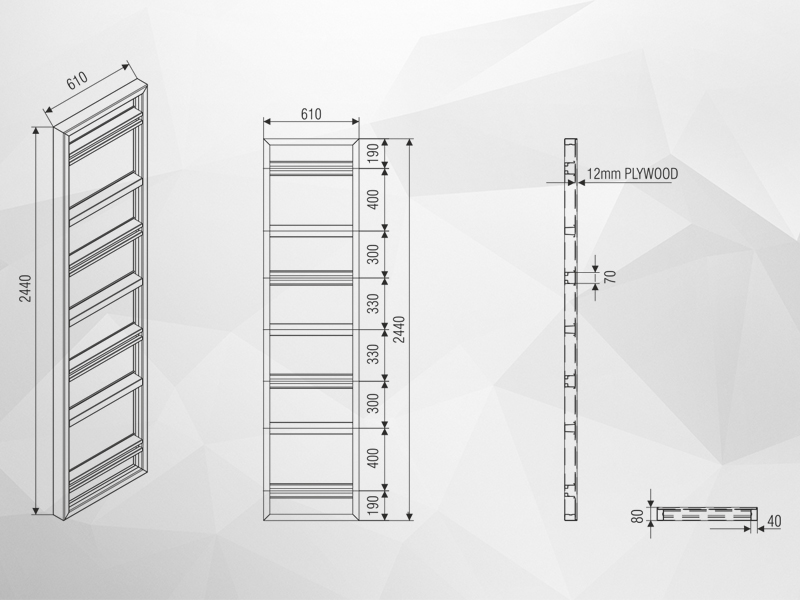

| Width | 610mm |
|---|---|
| Height | 2440mm |
| Thickness | 2mm |
| Expose Surface | 12mm Shuttering Plywood |
| Panel Surface | Powder Coated Roll Formed MS Sheet |
| Secton | 80mm x 40mm |
| Approx. Weight | 47 kg |

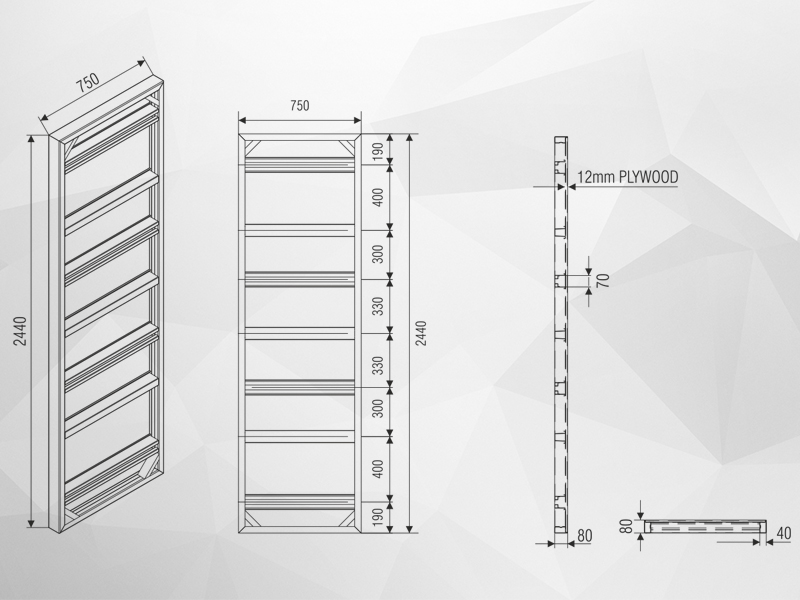

| Width | 750mm |
|---|---|
| Height | 2440mm |
| Thickness | 2mm |
| Expose Surface | 12mm Shuttering Plywood |
| Panel Surface | Powder Coated Roll Formed MS Sheet |
| Secton | 80mm x 40mm |
| Approx. Weight | 55 kg |

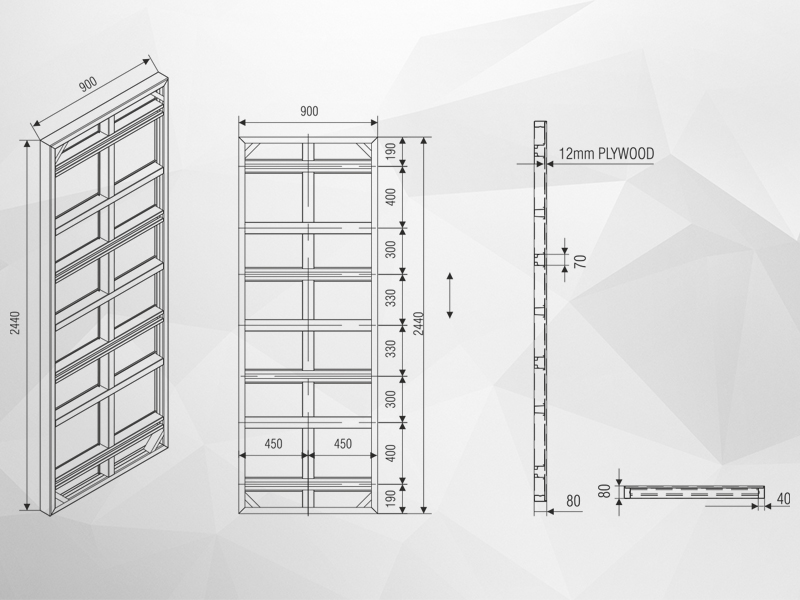

| Width | 900mm |
|---|---|
| Height | 2440mm |
| Thickness | 2mm |
| Expose Surface | 12mm Shuttering Plywood |
| Panel Surface | Powder Coated Roll Formed MS Sheet |
| Secton | 80mm x 40mm |
| Approx. Weight | 68 kg |

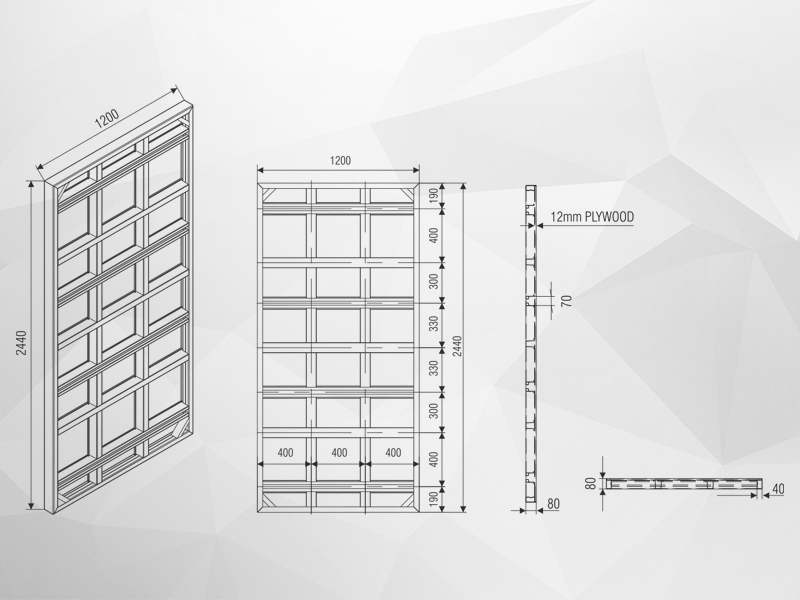

| Width | 1200mm |
|---|---|
| Height | 2440mm |
| Thickness | 2mm |
| Expose Surface | 12mm Shuttering Plywood |
| Panel Surface | Powder Coated Roll Formed MS Sheet |
| Secton | 80mm x 40mm |
| Approx. Weight | 88 kg |
