Indian Box Runner

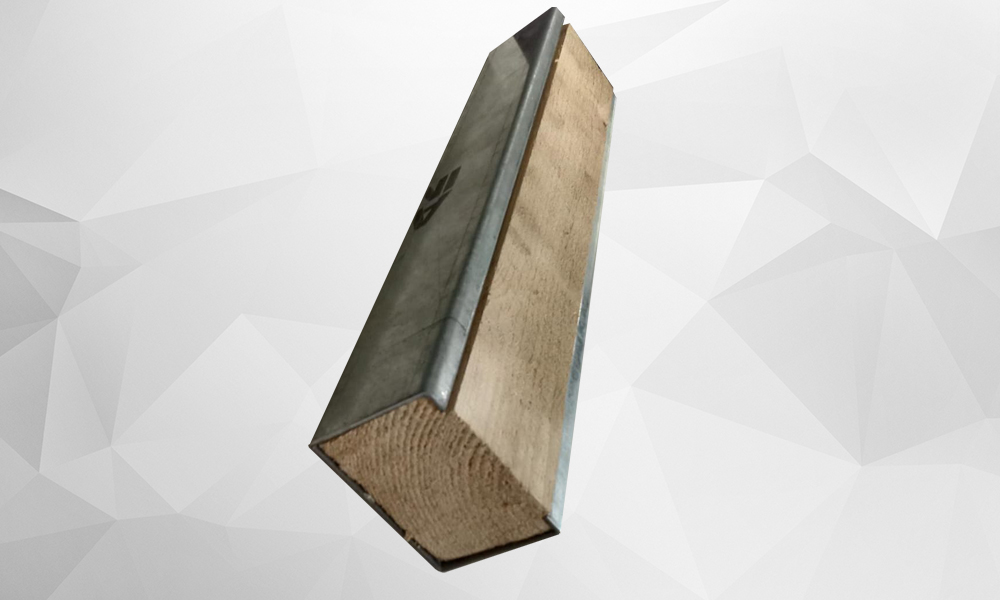

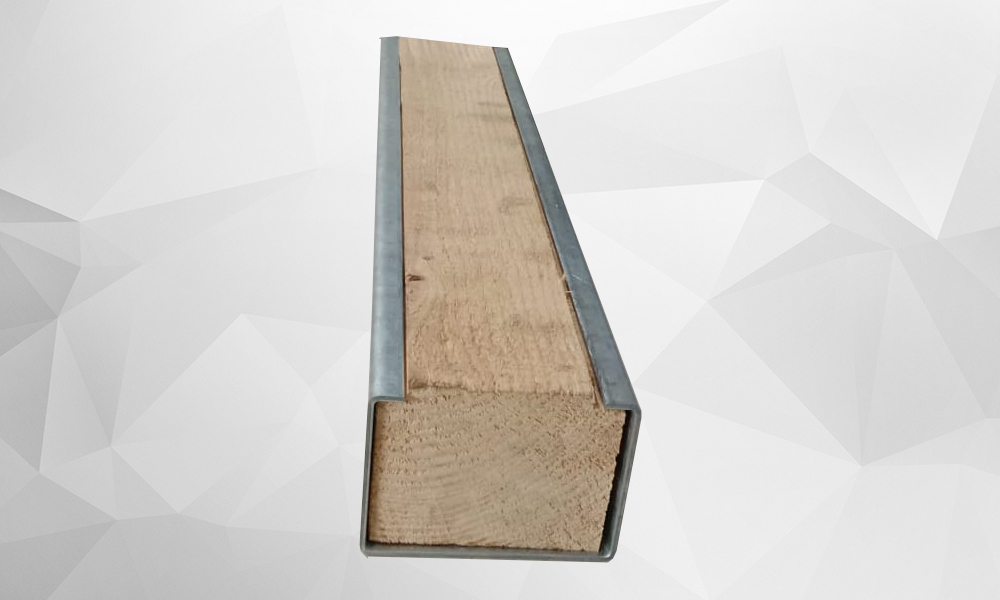

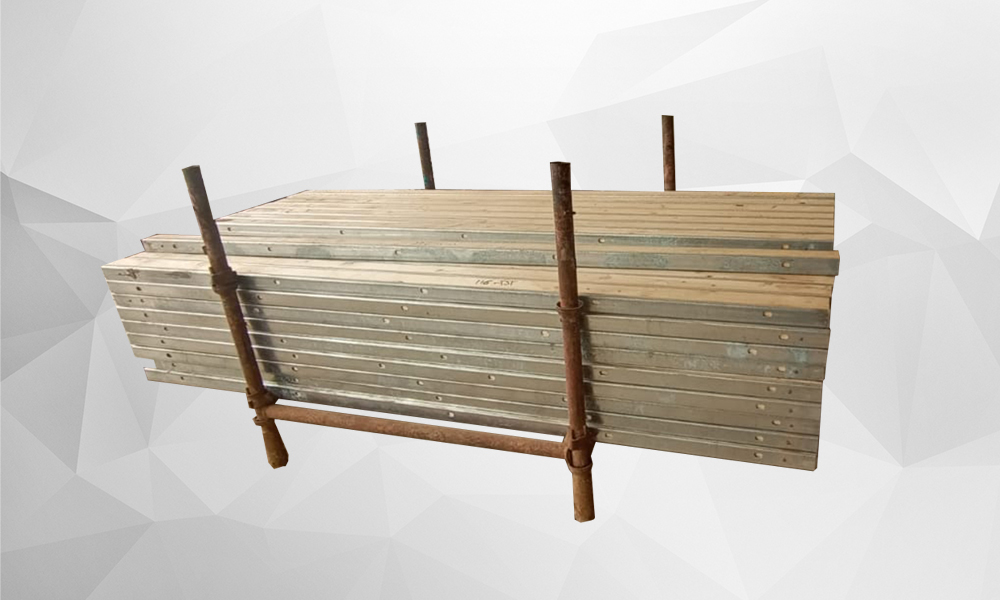

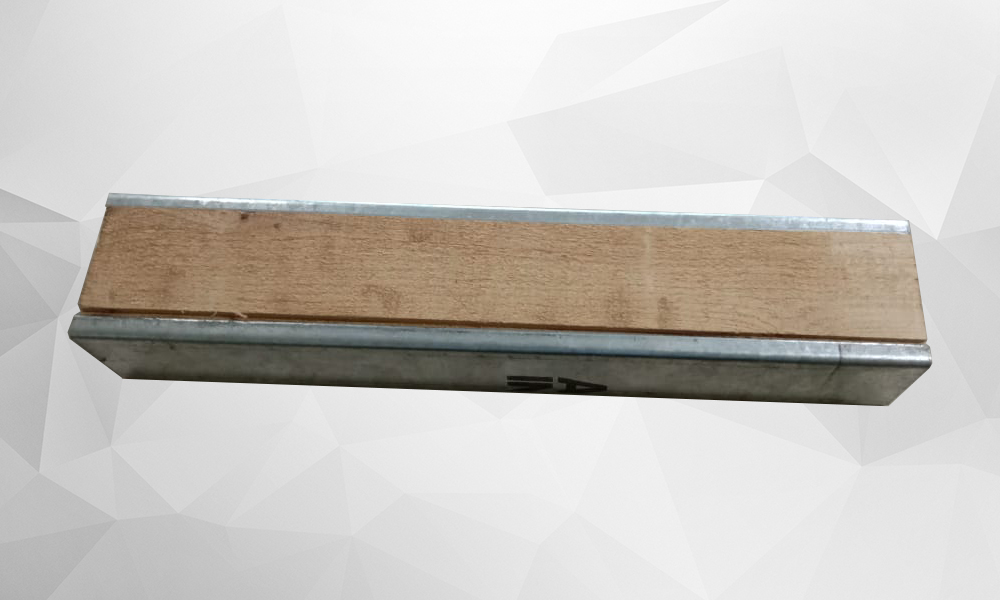

Indian Box is made by combination of cedar softwood and galvanized 2.5 mm bended sheet cover for enhanced wooden life as well as strength. it is generally used as primary or secondary runner in shuttering system. it boasts higher load bearing and long life.
| Product Code | Length | Width | Height | Approx. Weight | Surface |
|---|---|---|---|---|---|
| Indian Box - 90 mm x 50 mm | |||||
| ISF 1701 AG | 1.5 m | 90mm | 50mm | 9.70 kg | Galvanized |
| ISF 1701 BG | 2 m | 90mm | 50mm | 13.00 kg | Galvanized |
| ISF 1701 CG | 2.5 m | 90mm | 50mm | 16.20 kg | Galvanized |
| ISF 1701 DG | 3 m | 90mm | 50mm | 19.50 kg | Galvanized |
| Indian Box - 60 mm x 50 mm | |||||
| ISF 1702 AG | 1.5 m | 60mm | 50mm | 7.00 kg | Galvanized |
| ISF 1702 BG | 2 m | 60mm | 50mm | 9.50 kg | Galvanized |
| Size= L(mm) B(mm) H(mm) | Load (kn) | Ultimate Moment Capacity (kn.m) | Observations |
|---|---|---|---|
| 2500, 90, 50 | 39.44 | 6.902 | Failure of Beam occurred at the centre of the beam section. |
| 2500, 90, 50 | 50.23 | 8.790 | Failure of Beam occurred at the centre of the beam section. |
| 2500, 90, 50 | 36.39 | 6.368 | Failure of Beam occurred at the centre of the beam section. |
| 2500, 90, 50 | 41.39 | 7.243 | Failure of Beam occurred at the centre of the beam section. |
| 2500, 90, 50 | 26.29 | 4.601 | Failure of Beam occurred at the centre of the beam section. |
| 2500, 90, 50 | 25.60 | 4.480 | Failure of Beam occurred at the centre of the beam section. |
| 2500, 90, 50 | 25.30 | 4.428 | Failure of Beam occurred at the centre of the beam section. |
| 2500, 90, 50 | 23.15 | 4.051 | Failure of Beam occurred at the centre of the beam section. |
Permissible customization in length s available up to 3000mm in 90mmx50mm 60mm x 50mm
