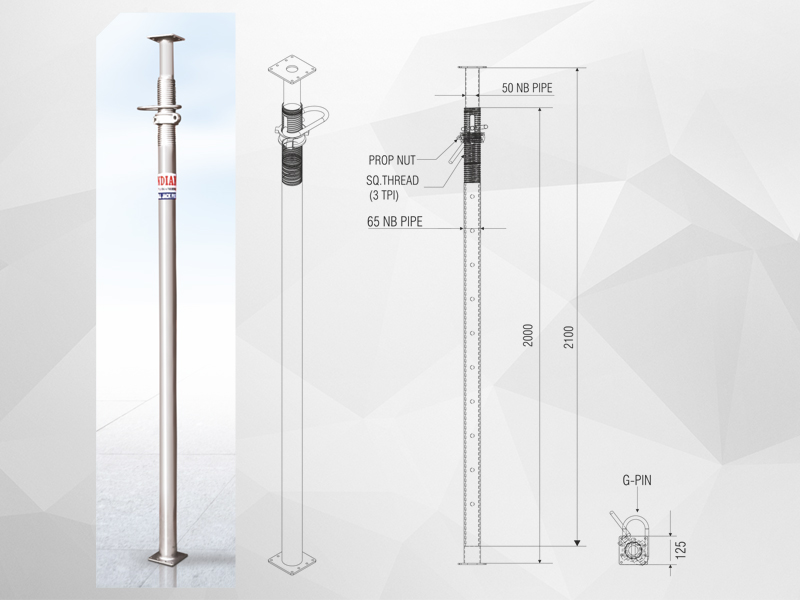

HD Jack Prop (GI)
| Product Code | ISF 3004 |
|---|---|
| Name | Heavy Duty Adjustable Jack Prop 2x2 |
| Outer Pipe | 2.0m |
| Inner Pipe | 2.1m |
| Min.Expansion | 2.1m |
| Min.Expansion | 3.8m |
|---|---|
| Approx. Weight | 23kg |
| Outer Pipe | 73 OD 3.2mm |
| Inner Pipe | 60 OD 2.5mm |
| Surface | Pro Galvanized/ Hot Dip Galvanized |
| Extension Lenght (m) | 2.2 | 3.0 | 3.5 | 3.9 |
|---|---|---|---|---|
| Failure Load (kN) | 86.81 | 55.44 | 44.79 | 29.68 |
| Reduction of Test Result (kN) | 86.38 | 55.16 | 44.56 | 29.53 |
